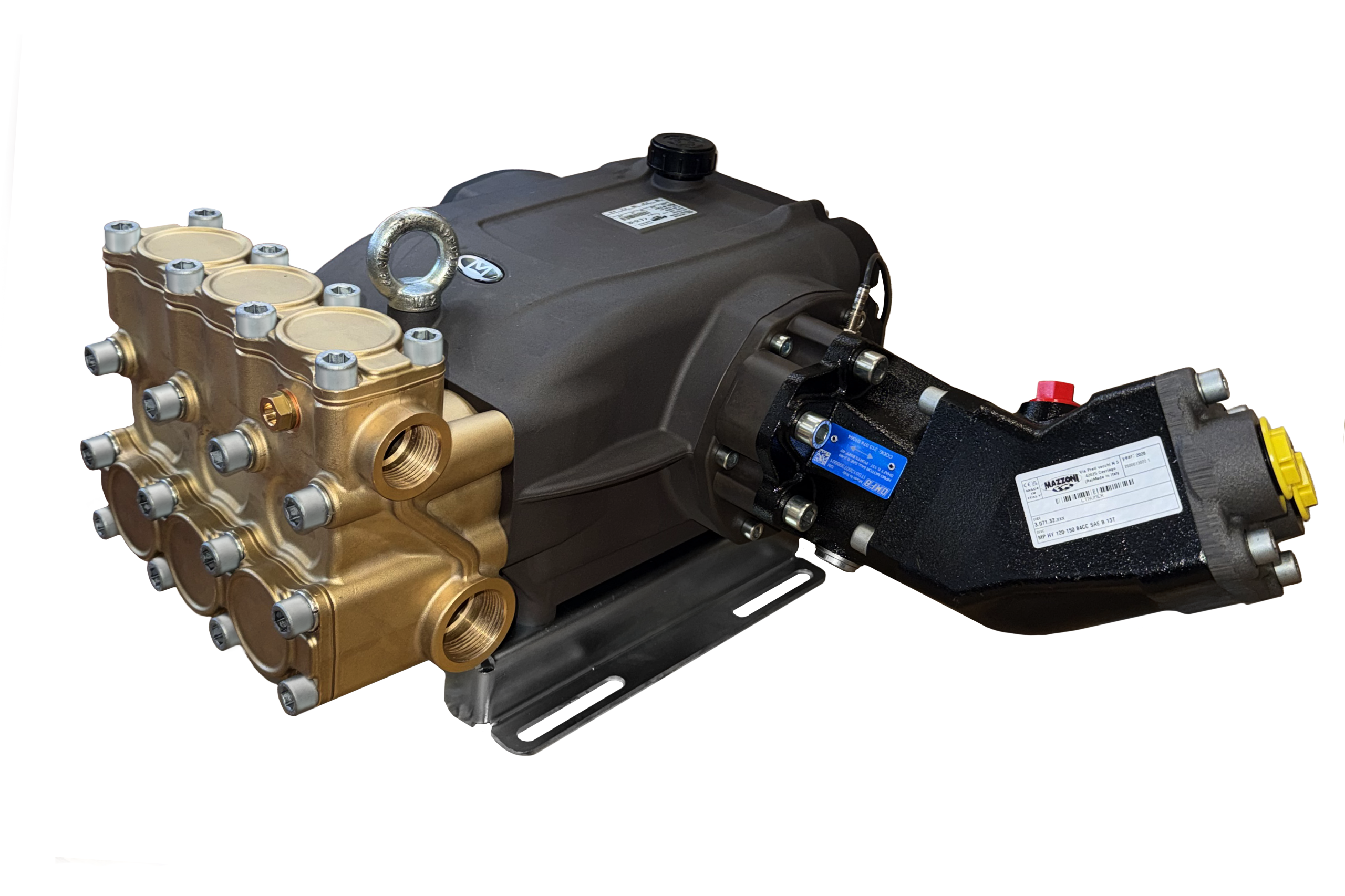

Mazzoni high-pressure pumps:
- Ground pistons for a smoother stroke and better oil-tightness.
- Oversized shaft and long end section for better torque transmission.
- Extra-thick ceramic pistons for greater durability
- Intake and delivery valves with larger water passages
- Rods made of a special alloy antifriction
- Forged brass pump head, designed for strength
- Double gasket sealing system – On Demand high temperature seals 85°C
- Ball bearings
- Body of the pump designed for long-term durability
Interested in one of our Products?
Contact us to request a quote.
Description
| PART NUMBER | MODEL | GPM | PSI | RPM | HP | BORE | STROKE | SHAFT |
| P3.010.002 | PM8170R | 2.69 | 2465 | 1740 | 4.50 | 18 mm/0.708 in | 8.2 mm/0.322 in | Right |
| P3.010.003 | PM10170R | 3.17 | 2465 | 1740 | 5.30 | 18 mm/0.708 in | 9.7 mm/0.381 in | Right |
| P3.010.004 | PM11170R | 3.48 | 2465 | 1740 | 5.83 | 18 mm/0.708 in | 11 mm/0.433 in | Right |
| P3.010.005 | PM12170R | 3.80 | 2465 | 1740 | 6.36 | 18 mm/0.708 in | 11.6 mm/0.456 in | Right |
| P3.010.006 | PM13170R | 4.12 | 2465 | 1740 | 6.89 | 18 mm/0.708 in | 12.5 mm/0.492 in | Right |
| P3.010.007 | PM14170R | 4.44 | 2465 | 1740 | 7.42 | 18 mm/0.708 in | 13.6 mm/0.535 in | Right |
| P3.010.001 | PM15170R | 4.75 | 2465 | 1740 | 7.95 | 18 mm/0.708 in | 14.5 mm/0.570 in | Right |
| P3.010.009 | PM8170L | 2.69 | 2465 | 1740 | 4.50 | 18 mm/0.708 in | 8.2 mm/0.322 in | Left |
| P3.010.010 | PM10170L | 3.17 | 2465 | 1740 | 5.30 | 18 mm/0.708 in | 9.7 mm/0.381 in | Left |
| P3.010.011 | PM11170L | 3.48 | 2465 | 1740 | 5.83 | 18 mm/0.708 in | 11 mm/0.433 in | Left |
| P3.010.012 | PM12170L | 3.80 | 2465 | 1740 | 6.36 | 18 mm/0.708 in | 11.6 mm/0.456 in | Left |
| P3.010.013 | PM13170L | 4.12 | 2465 | 1740 | 6.89 | 18 mm/0.708 in | 12.5 mm/0.492 in | Left |
| P3.010.014 | PM14170L | 4.44 | 2465 | 1740 | 7.42 | 18 mm/0.708 in | 13.6 mm/0.535 in | Left |
| P3.010.008 | PM15170L | 4.75 | 2465 | 1740 | 7.95 | 18 mm/0.708 in | 14.5 mm/0.570 in | Left |
Additional information
| Weight | 16.53 lbs |
|---|
